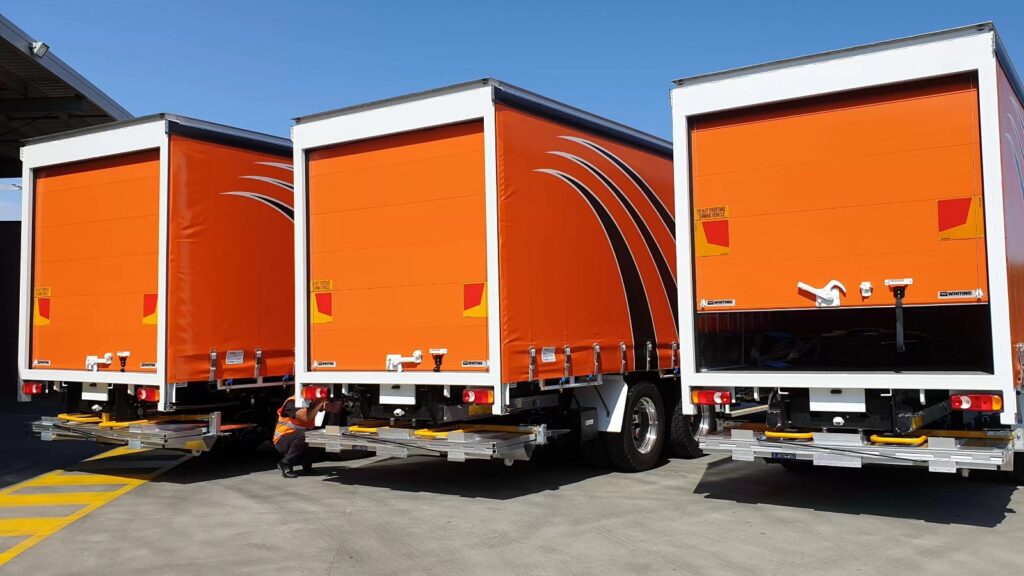

Box truck roll-up door replacement,
measured and fitted here in KC.

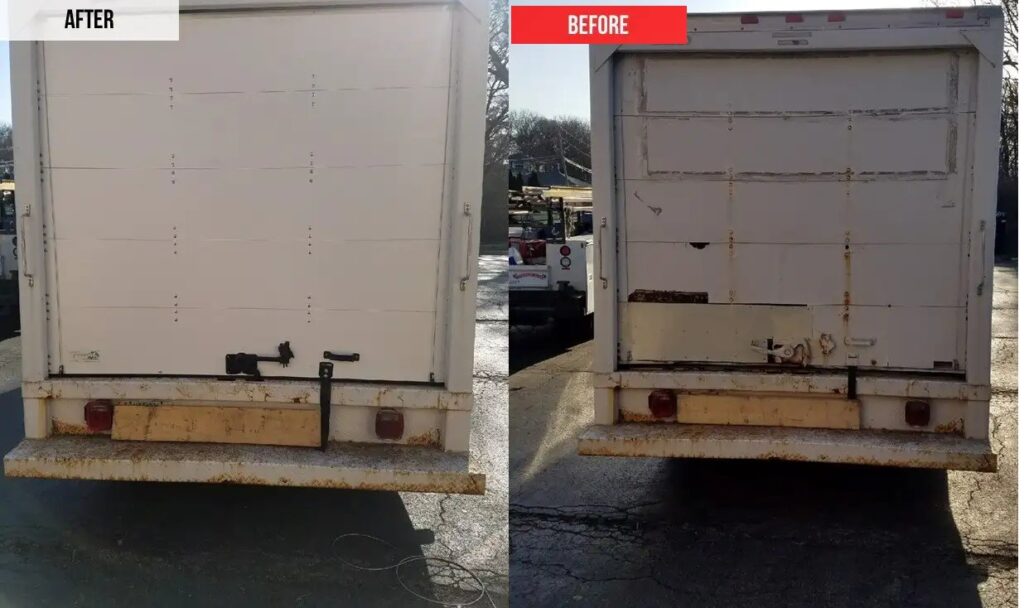

When a truck door is past repairing

Plenty of roll-up doors are worth fixing. Some are not. The ones we recommend replacing are the ones where the damage is spread across the whole curtain rather than concentrated in one place — several slats bent or split along their length, a curtain that has been forced back into a twisted track more than once, or corrosion far enough along that new fixings will not hold. Once you are replacing a third of the slats, a new curtain is usually the cheaper answer over the life of the vehicle, and it stops the run of repeat callouts.

• Several slats bent or split along their length.
• A curtain forced back into a twisted track more than once.
• Corrosion far enough along that new fixings will not hold.
• You are already replacing a third of the slats.
• The same door has come back for repair more than once this year.

What wears a roll-up curtain out

These doors fail from accumulated stress rather than one bad day. Dozens of cycles a day, loads shifting against the inside of the curtain in transit, dock impacts, and road salt and grit ground into the tracks and hinges all take their turn. Once a curtain has been forced back into a twisted track, the slat joints loosen — and because the curtain is one connected assembly, that does not stay in one place. A loose joint puts load on the ones either side of it, which is why damage that started as a single dented slat tends to show up along the whole curtain a few months later.

How the job runs

We measure the opening and the drum properly rather than working from the truck's model year, because these openings vary more than people expect and a door that is close is a door that binds. Once the replacement is in, we fit it, set the spring tension so the curtain balances, and check it runs cleanly through its full travel before we leave.

What gets replaced along with the curtain

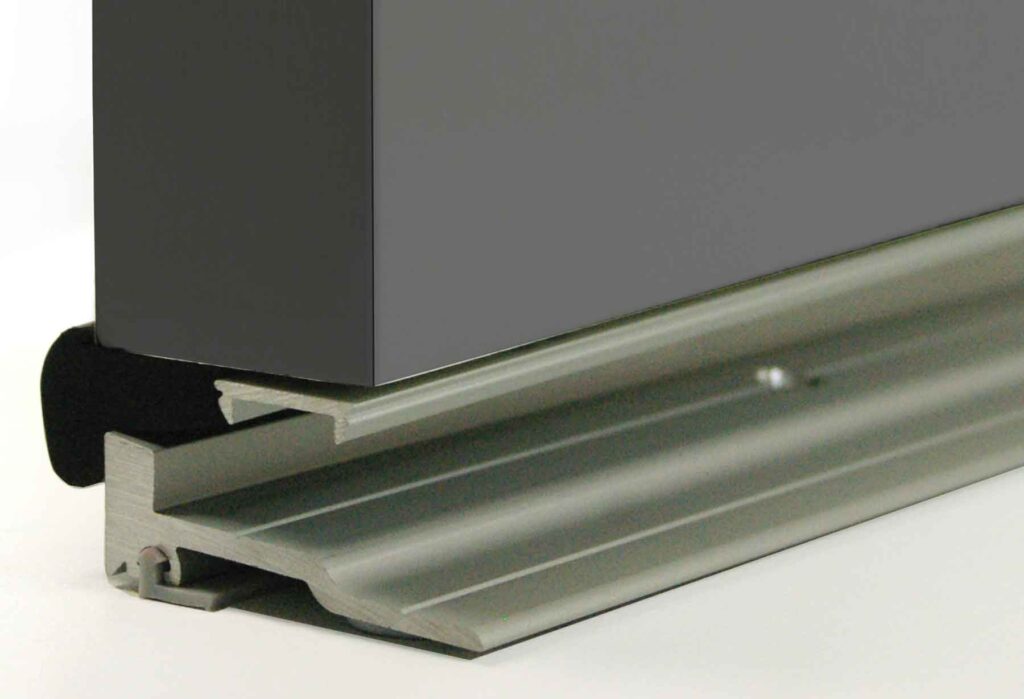

A new curtain on its own is often not the whole job. We check the tracks and side guides for distortion, the rollers for flat spots and seizing, the cables where they fray at the drum, and the bottom bar and its seal — and we replace whichever of those are worn, not all of them as a matter of course. The reason matters: fitting a new curtain into worn or distorted guides is what makes a brand-new door bind. That friction works against the spring from the first week, and a door that starts out fighting its own guides is the one that comes back needing springs and cables early.

How a replacement runs, step by step

1. Measure The opening and the drum, on site, not from the model year.
2. Quote Free, with an honest timeline for the door arriving.
3. Strip and check Guides, rollers, cables, bottom bar and seal.
4. Fit and balance Set the spring tension so the curtain balances.
5. Run it through Full travel, both ways, before we leave.

Downtime is the real cost

A box truck that cannot be loaded is not earning, so the point of the exercise is getting the vehicle back on the road rather than admiring the door. We will be honest with you about the timeline at the quote — if the sensible answer is a temporary repair now and a replacement when the door arrives, that is what we will say.

Keeping the new door alive

Most of what shortens the life of a truck door is avoidable. Keep the tracks and the bottom channel clear of grit, do not let the load rest against the curtain in transit, and close the door properly rather than letting it slam down the last foot. If it starts to bind, get it looked at before it becomes a spring or cable job. And if it does jam, leave it: the counterbalance spring holds a large amount of stored energy and a curtain out of its guides can drop fast, so forcing it turns a small job into a large one.

What it costs to find out

Quotes on a replacement door are free. If you also want existing damage diagnosed on the same visit, our service call is $79 and it goes toward the work if we do the job the same day. No obligation either way, and no pressure from us.

Kansas City and the whole metro

We are family-owned and based in Olathe, and we cover the full KC metro in Kansas and Missouri — fleet yards, docks and single trucks alike. If you are also fitting out a new vehicle, see roll-up truck door installation; for buildings rather than vehicles, start at commercial garage door service or browse the full service list. Call or text (913) 731-0190 to get a door measured.
